Source pane with one article

Build 1501 on 14/Nov/2017  This topic last edited on: 17/Mar/2016, at 16:50

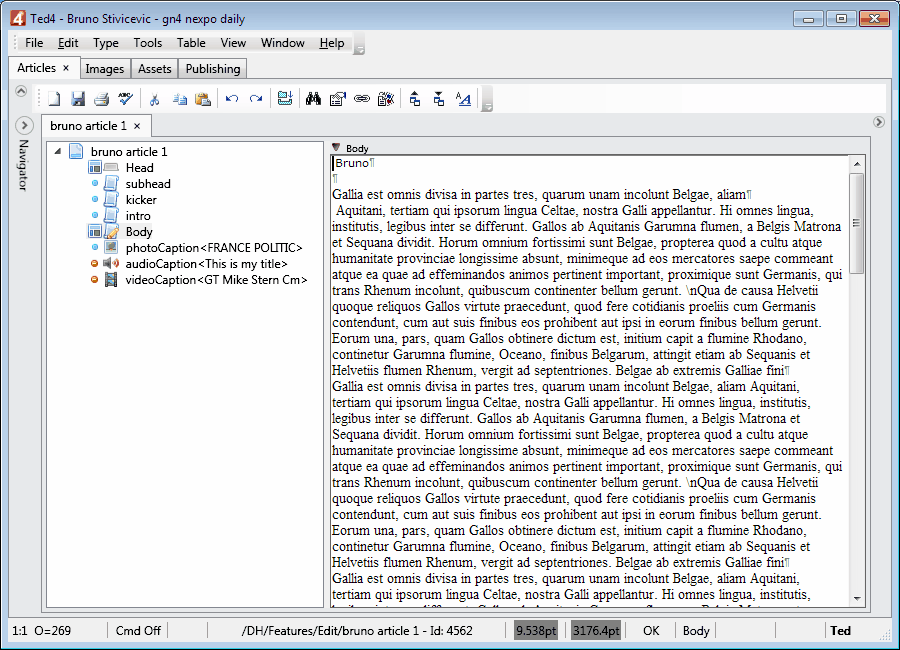

Use the article source pane to edit text in the source mode. It displays text galley, and you can edit and format text by styles and keys, and/or view/edit tags. The source pane displays all article elements, being linked to page or not. Elements are displayed one below each other. See also Resize article elements in the source pane and Collapse article elements in the source pane.

ted_source_zoom30

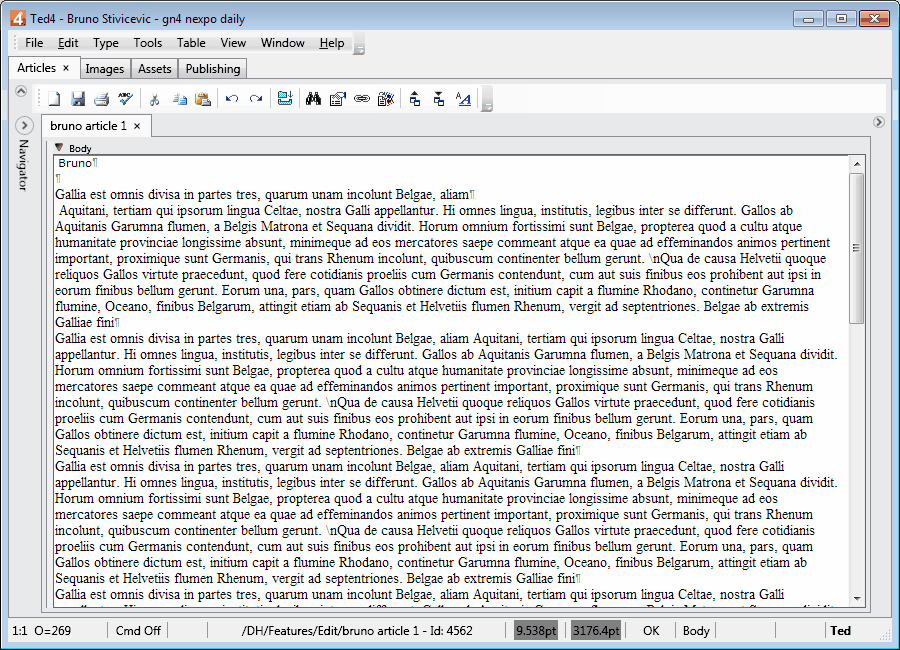

When the article tree is hidden, it is recommended to display element names in the source splitters to know what element you are editing. The procedure to display or hide type labels is explained in Show or hide element names in splitter.

ted_source_notree_zoom30

To view the link status of the elements, display the article tree. To display the article tree, on the Window menu, point to Palettes, and then click Article tree.
