Contacts main tab

Build 1501 on 14/Nov/2017  This topic last edited on: 17/Mar/2016, at 17:36

Use the Contacts main tab in the User browser to locate contacts by means of the search pane (F) and review their content in the listing (L) and in the preview (N, O, P, Q), to select the operations in the main menu (I), e.g. to create a new contact or edit existing one and similar.

Click to toggle graphic size

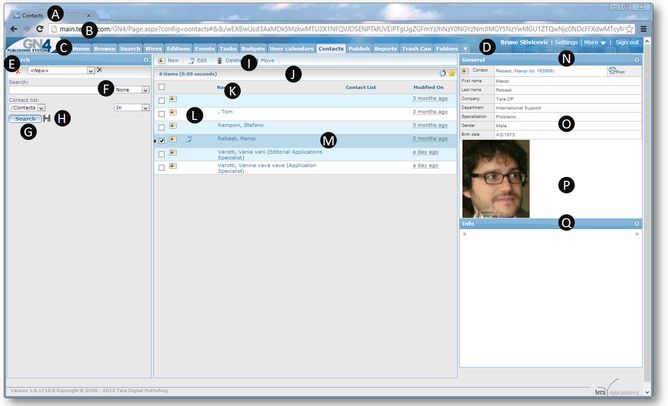

Click to toggle expandMain window description

(A) Name of the current page

(B) Address (URL) of the GN4 server

(C) Main tabs ribbon

(D) Login/logout and settings info

(E) Saved searches control

(F) Fields to enter search criteria

(G) Search button

(H) Save search button

(I) Main menu bar

(J) Command bar with results info on the left and the refresh button on the right

(K) Listing header with Select All check box (left) and name of displayed columns

(L) Listing of contacts

(M) The selected contact

(N) Preview pane (expanded)

(O) Preview of the selected contact

(P) Image of the selected contact

(Q) Additional information
Click to toggle expandMain menu bar

New

Display a dialog box to create a new contact.

Edit

Display the dialog box to edit selected items.

Delete

Delete the selected items.

Move

Send selected items to another address book.
