Home main tab

Build 1501 on 14/Nov/2017  This topic last edited on: 17/Mar/2016, at 17:35

Use the Home main tab in the User browser to select a main tab to work with (F), or to perform various operations (listed in G and H zones) quickly.

Note: you can select a main tab also by clicking the main tab ribbon (C), and you can search for main tabs by entering something in the filter box (E).

Click to toggle graphic size

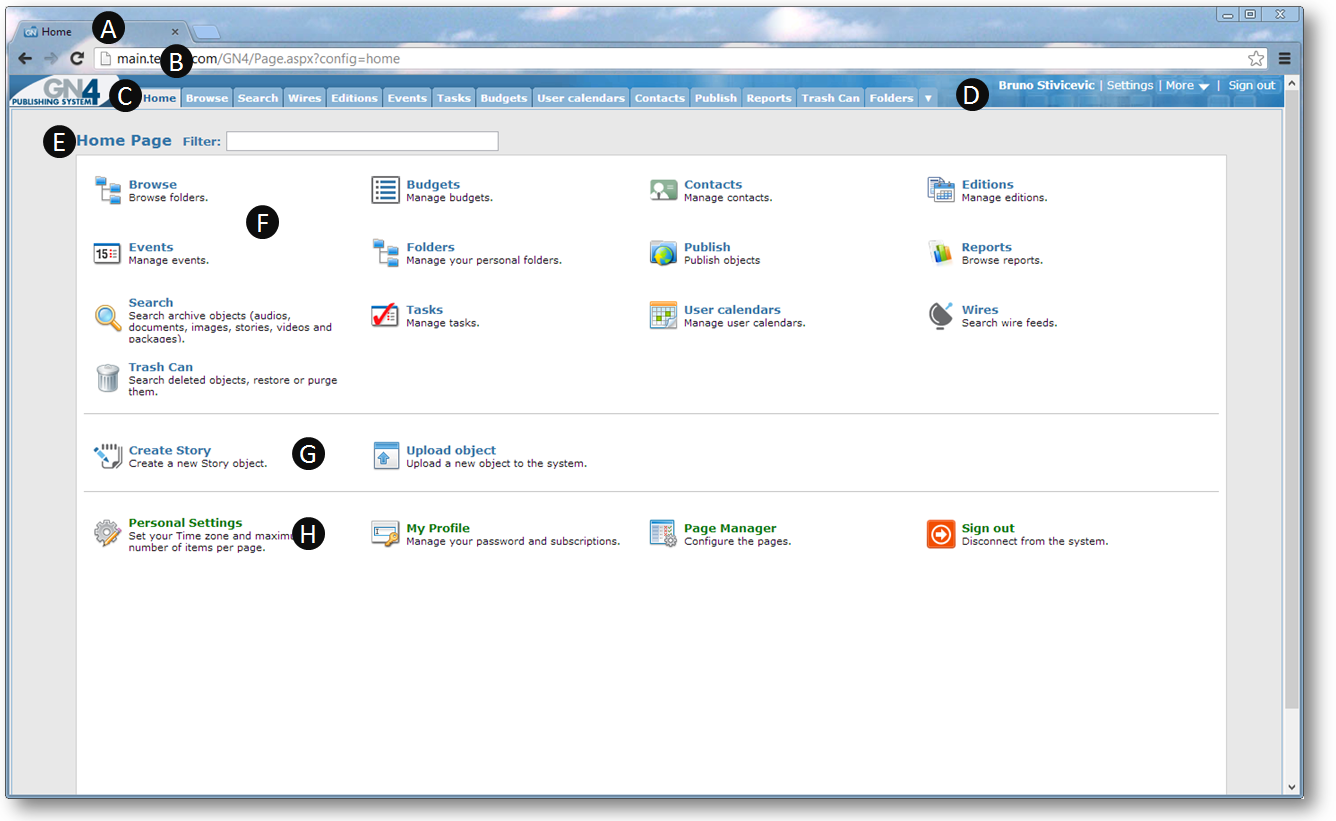

Click to toggle expandMain window description

(A) Name of the current page

(B) Address (URL) of the GN4 server

(C) Main tabs ribbon

(D) Login/logout and settings info

(E) Filter box, to find modules by name

(F) List of modules

(G) List of preferred operations: display the related dialog box directly

(H) List of standard functions: display the related dialog box directly

(I) Command bar with results info on the left and directory style selector on the right

(J) Listing header with Select All check box (left) and name of displayed columns, with sort marker (next to Modified column)

(K) A toolbar that appears when you hover your mouse over an item in the listing

(L) The selected item in the listing

(M) The audit pane (expanded), containing history of actions, performed on the selected item(s)

(N) Preview of selected item(s)

(O) Preview of multimedia items
