Quote format suitable for variable number of lines in a paragraph

Build 1501 on 14/Nov/2017  This topic last edited on: 24/Oct/2016, at 14:39

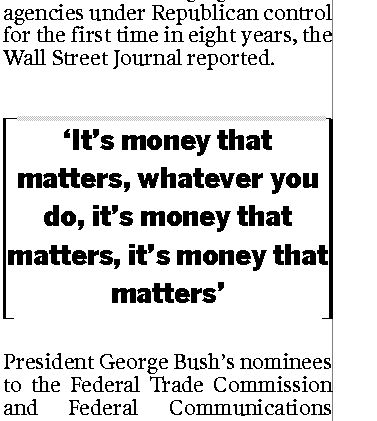

Let's assume you want to create a format to allow editors to use "quotes" in the middle of a text. An extract of the story, in a bigger point size, thicker font and surrounded by brackets. It would look more or less like this:

quoteformat_zoom40

The style in this example works only within a single paragraph, but users can use SHIFT+8, to create a line break, and the format defaults can be set that line break aligns the text as paragraph break does it.

HOW IT WORKS?

The user writes a text for quotes, then presses a key, which insert >quotes...< with appropriate parameters. The borders extend to cover entire paragraph. If there are line breaks in the paragraph, they are handled properly.

If you want to make it a paragraph style, you can. Just change hidden to paragraph.

TYPICAL VALUES

>quotes 10pt,3pt,0pt,12pt,3mm,0.5pt,1.5pt,2pt,1.4mm<

hmtoggle_plus1Details

STYLE PARAMETERS (all of measure type)

1.Top offset of entire object: increase this value to make more space between the last line of the previous text and the top rule. Value can be negative as well.
2.Top text margin: increase this value to make more space between the top rule and the first line of the quote. Value can be negative as well.
3.Bottom text margin: increase this value to make more space between the last line of the quote and the bottom rule. Value can be negative as well.
4.Bottom offset: increase this value to make more space between the bottom rule and the first line of the body text below. Value can be negative as well.
5.Text left/right margins: put on 3mm
6.Horizontal rule weight: put on 0.5pt
7.Vertical rule weight: put on 1.5pt
8.Gray rule weight: put on 2pt
9.Gray rule margins: put on 1.4mm

There's another parameter left, if you need it for something.

If your body text is locked to grid, the bottom offset may behave strangely.

Tags

>endtab<>sav<>f 1206<>h 11.6pt<>ld 15.6pt<>pqc<>is<>ta LD+#1+#2+#7<>a #1+#2+#7<>bld #4<>arl 0,-LD*92/100-#2,BW,0,-LD*92/100-#2-#6,BE,K,100<>arl #9,-LD*92/100-#2+#8-1pt,BW,-#9,-LD*92/100-#2-#8+1pt,BE,K,10<>arl 0,DesD*35/10+#3,SW,0,DesD*35/10+#3+#6,SE,K,100<>arl 1.4mm,DesD*35/10+#3,SW,-1.4mm,DesD*35/10+#3+#6,SE,K,0<>arl 0,-LD*92/100-#2-#6,BW,#7,DesD*35/10+#3+#6,SW,K,100<>arl -#7,-LD*92/100-#2-#6,BE,0,DesD*35/10+#3,SE,K,100<>ilr #5+#7<

Note: to paste above tags in Ted4 source window, from where you can copy & paste them to the style editor window, follow the instructions in Paste GNML tags from and to text.
