Results zone

Build 1501 on 14/Nov/2017  This topic last edited on: 17/Mar/2016, at 17:08

The results zone appears below the search criteria zone.

Its upper part contains the found pages, displayed either as list or as grid. To change the way the pages are displayed, drag the Details slider from left to right. At the certain point, the list display is replaced by grid display, and the page size grows as you drag the slider.

hmtoggle_plus1List

The list contains the work state box (with the color of the page current work state), page number, section and zone. Clicking headers will currently not change the sort - use the Sort selector.

navigator_results_list
hmtoggle_plus1Small grid

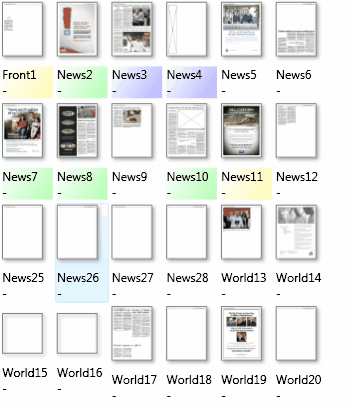

Small grid style contains the page thumbnail, the section and the page number.

navigator_results_smallgrid


hmtoggle_plus1Large grid

Large grid style contains the page thumbnail, number, section and zone, and work state colored rectangle.

navigator_results_largegrid

The lower part of the results section contains the following controls:

•Detail slider browses through the list of the available styles, but not only this: for the grid-like styles, it changes the thumbnail size.

•Style selector: selects one the available result styles

•Sort selector: selects one of the available sorts: Number (sort by page number), Section (sort by section and then by page number - suitable for editions organized in sections such as A1, A2, A3, B1, B2, B3), Zone (sort by zone and then by page number), Name (sort by page name).

•Invert check-box: select it to sort descending (Z-A, 9-0).
