You may want to display linked content in archive, e.g. starting from a preview of a found archived page, display all linked stories and/or images. Moreover, you may start from a preview of a found archived story, and then display all pages where it appears and all the images that were linked to the story. Finally, you may start from a preview of a found archived image, and then display all pages where it appears and all the stories to which the image was linked to.

Display related images/stories of an archived page, displayed in the preview

The preview shows the page and two expanders: Related Images and Related Stories:

Expand Related images. You can review the image content, download it or add it to clipboard:

Expand Related stories. You can read the story content, add the story to clipboard or zoom the text:

Moreover, you can download the PDF of the archived page.

Display related stories/pages for an archived image, displayed in the preview

Expand Related stories. Now you can read the story content, add the story to clipboard or zoom the text:

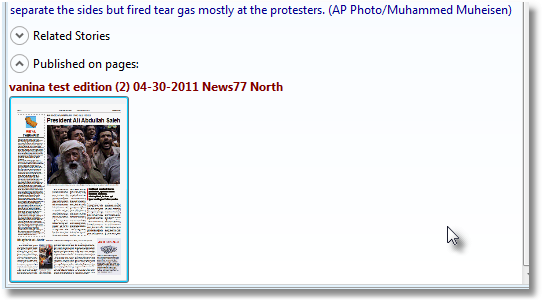

 Expand Published on page, and you can review or download the PDF of the archived page.



Display related images/pages for an archived story, displayed in the preview

Expand Related images and you can download an images by clicking on it, add it to clibboard and read the caption:

 Expand Published on page, and you can review or download the PDF of the archived page.

 Changes in the configuration

The following files have been modified.

..\config\global\gn4\ted4_config.xml

..\config\global\gn4\shell4_config.xml

..\config\global\gn4_tark4_common\xsl_xaml.xsl

In ted4_config.xml, the InfoPanel code has been reduced to the call to a feed placeholder that calls an xsl configuration file. The changed parts looks like:

     <InfoPanel Name="Image" ObjectTypeName="image">

      <DataTemplate>

        <l:XamlFeedItemPreviewControl Height="Auto" FeedName="XamlDisplay" ObjectId="{Binding Path=[image.id]}"/>

      </DataTemplate>

         ...

In xsl_xaml.xsl, the matching of archive objects document, story and image has been rewritten.

In shell4_config.xml, in directory style for Tark4, under base queries Tark4ShellMainTab and Tark4PageNavTab, a new column is added to show story's related package.

See also

Display linked content in Tark4 archive from a listing
