Results in I4

Build 1501 on 14/Nov/2017  This topic last edited on: 17/Mar/2016, at 16:49

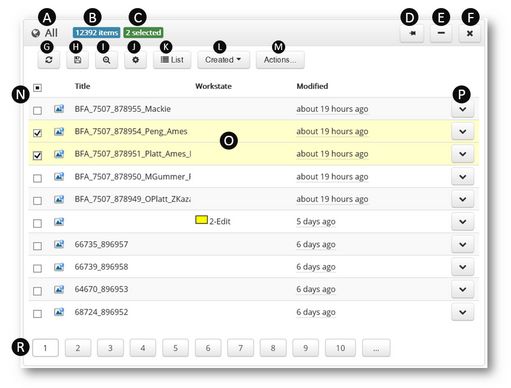

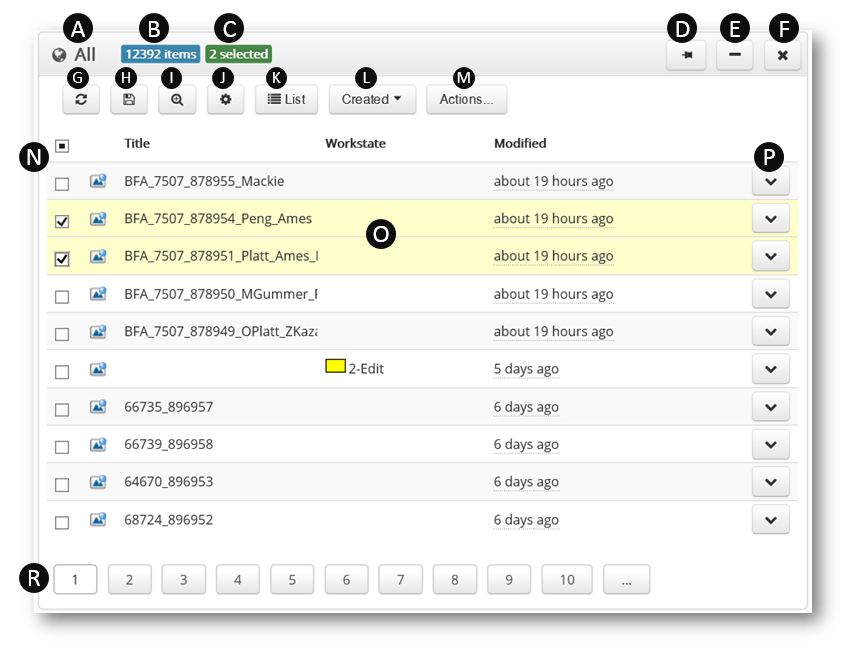

Results zone contains results, displayed as a table or a grid. .

The Directory Style selector (K) changes the view.

Click to toggle graphic size

(A)Header: The name of the listing ("All"). Typically, the same as the name of the main tab.
(B)Header: Total number of items in the listing. Note: not all the items are displayed at once. Scroll to the bottom of the listing to load another page of results.
(C)Header: The number of currently selected items.
(D)Header: The pin toggle. If you pin a listing, it remains on screen when you display another listing. When the pin points to the left as on the above screenshot, the listing is not pinned. Click the button to pin the listing - the pin will then point down.
(E)Header: The "minimize" toggle.  When you click it, the listing collapses only to the header.
(F)Header: The "close" button: click to close the listing.
(G)Command bar: refresh button.
(H)Command bar: Save search button. When you save a search, the label appears below the quick search.
(I)Search pane toggle.
(J)Listing settings toggle.
(K)Directory styles selector.
(L)Sort order selector.
(M)Actions menu (if you have more selected items)-
(N)"Select all" check box.
(O)Currently selected items.
(P)Actions menu inline (for that item).
(R)Other results pages.
