TabItem class
Contents
Description
Defines a navigator within a NavigatorControl in a ShellTabItem definition of a main tab. This applies to a structure where the entire navigator code is embedded in the NavigatorControl section.
Members
| Name | Identifier. |
| Header | The name as it appears on the navigator label. |
| Grid | Enclose other definitions. |
| Expander | Contains SearchConditionsControl to display search form. |
| ShellResultView | Displays results under the search form. |
| StyleTabStrip | Displays commands zone under results. |
Remarks

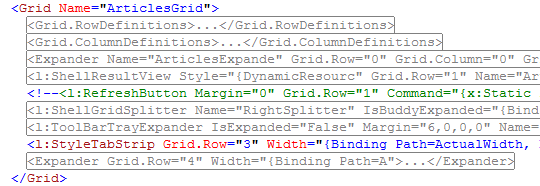

If you expand the <l: NavigatorControl section within Ted4Articles main tab, and then expand the first <TabItem section, you'll see the definition of the navigator named ArticlesTab:
The navigator definition is all enclosed within a sub-grid, that in this case has name ArticlesGrid. The name is not unique: exactly the same code appears under Ted4PubDests main tab in Ted4_TabItems.xml and under Fred4Pages main tab in Fred4_TabItems.xml.
The navigator definition is pretty complex, and contains various sub-parts:
