Description

Displays the copy indicator in a listing.

Namespace

xmlns:l="http://www.teradp.com/schemas/GN4/1/Shell/Presentation"

Members

Example

<l:CopyActionsIndicator

         Value="{Binding Path=[folderObject:Dests]}"

         Foreground="#FF8cb2d6"

         Content="&#x25A0;"

         Header="Copied to:"

/>



<l:CopyActionsIndicator

         Value="{Binding Path=[folderObject:Sources]}"

         Foreground="#FF8cb2d6"

         Content="&#x25A0;"

         Header="Copied from:"

/>

More details

The simplest method is to use the following markup:

<l:CopyActionsIndicator

  Value="{Binding Path=[archiveObject:Dests]}"

  Content="*" Header="Copied to:" />

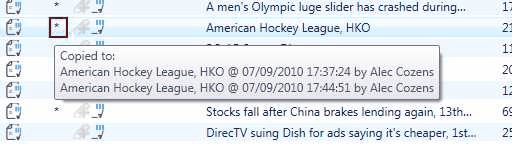

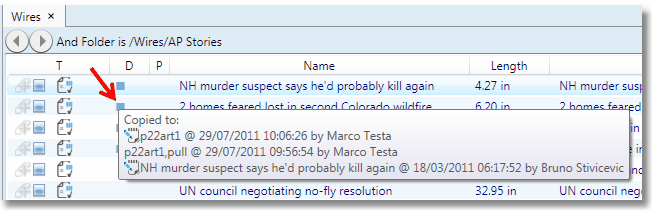

The above will display an asterisk if there is copy to information available on the associated object and also display details in a tooltip if the indicator is hovered over:


A similar thing for sources would be:

<l:CopyActionsIndicator

  Value="{Binding Path=[archiveObject:Sources]}"

  Content="*" Header="Copied from:" />

The content can be anything, e.g. an icon:

<l:CopyActionsIndicator

  Value="{Binding Path=[archiveObject:Sources]}"

  Header="Copied from:" >

 <l:ConfigIcon IconName="tlb_Footprint"/>

</l:CopyActionsIndicator>

It is also possible to embed the information in a listing:

<ItemsControl ItemsSource="{Binding Path=[archiveObject:Dests]}">

  <ItemsControl.ItemTemplate>

    <DataTemplate bp:schemaValidation="none">

      <TextBlock>

        <TextBlock.Text>

          <MultiBinding StringFormat="{}{0} @ {1} by {2}">

            <Binding Path="ObjectDesc"/>

            <Binding Path="Time"/>

            <Binding Path="UserDesc"/>

          </MultiBinding>

        </TextBlock.Text>

      </TextBlock>

    </DataTemplate>

  </ItemsControl.ItemTemplate>

</ItemsControl>



Note the use of bp:schemaValidation="none" which indicates to the system not to parse any bindings enclosed within the associated element (DataTemplate) against the Schema.
